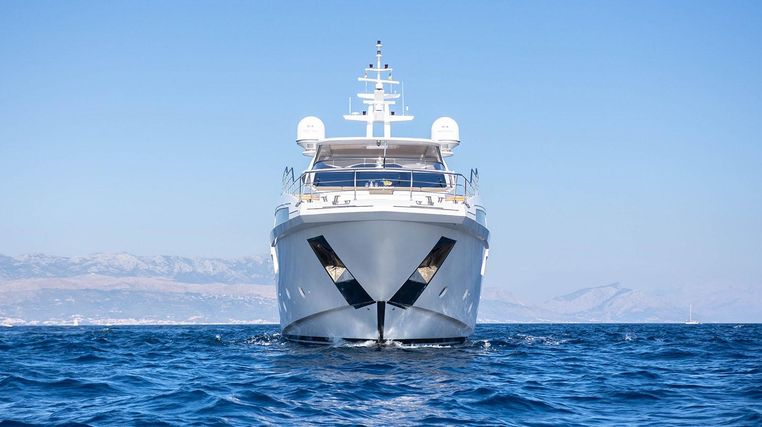

2019 Azimut 35 Grande

• Builder: Azimut Yachts (Italy)

• Model Azimut Grande 35 Metri

• Exterior Styling & Concept: Stefano Righini

• Hull Designer: P.L. AUSONIO Naval Architecture & Azimut R&D Dept.

• Interior Designer: Achille Salvagni Architetti

• Type: Motor-Yacht / Superyacht / Tri-deck Yacht

• Hull Type: Semi Planing
• Keel: Planing with wave piercer

• Hull Material: Carbon Fiber + GRP

• Superstructure Material: Carbon Fiber + GRP
• Decks: Teak
• Year Built: 2019

• Length Overall (incl. pulpit): 35.17 m (115' 5")

• Length at Waterline: 28.52 m (93' 7")

• Beam Max: 7.50 m (24' 7'')

• Draft (incl. props at full load): 1.91 m (6' 3'')

• Displacement (at full load): 154,000 Kgs (339,512 Lb)

• Gross Tonnage: 269 GT

• Class: RINA Pleasure Yacht C ✠ HULL · MACH Y

• Flag of Registry: United Kingdom
• Lying: Livorno, Italy

• Type / Fuel: Twin Screw Diesel

• Main Engines: 2 x 2400 Hp (1790 kW) MTU 16V 2000 M96

• Engine Hours: 400 h (Nov. 2021)

• Maximum Speed: Up to 28 Knots

• Cruising Speed: Up to 22 Knots

• Economical Cruising Speed: Up to 12 Knots

• Range @ Economical Cruising Speed: 1500 nm

• Gear Boxes: 2 x ZF 3360, Ratio 3.519:1

• Shafts: AQUAMET 17
•  Propellers: 2 x 5-blade NiBrAl

• Fuel Capacity: 18,000 l (4,755 US Gal)

• Fresh Water Capacity: 3,000 l (792 US Gal)

• Holding Tank Capacity: 1,250 l (330 US Gal)
• Grey Water Tank Capacity: 1,250 l (330 US Gal)

• 5 En-suite staterooms for 10 guests

• Cabin Configuration:



  • Master cabin on main deck with double island bed, study, opening balcony on portside with automatic handrails, walk-in wardrobe, his & hers en-suite bathroom



  • 2 x VIP cabins belowdecks, each with double island beds, closets, en-suite bathrooms



  • 1 x Twin cabin belowdecks, with single beds, closets and en-suite bathroom



  • 1 x Double cabin belowdecks, with closets and en-suite bathroom



• Day-head on main deck with hand shower

• 4 Crew cabins for 6 crew, each with en-suite facilities

• Crew mess

• Interior Woodwork: Oak light wood matt mostly, combined with Mahogany dark wood 100% gloss

• Electrical Systems: 400V AC / 50 Hz / 24V / 12V
• Generators: 2 x KOHLER 70 kW
• Generator Hours: Port 1960 h, Starboard 2070 h (Nov. 2021)
• Main Machinery: 400V AC / 50Hz / 3 phases
• Lighting and Household Appliances, Stereo, TV sets, and other Low Power Users: 230V AC / 24V AC, single phase
• Emergency Lighting System: 24V DC battery system
• Service Equipment: 24V DC battery system
• Radio Equipment: 24V DC battery system
• AC Power: Supplied by 2 x Diesel generators or by a shore power system
• Shore Power: 125 A shore power connector
• Transformer: 80 KVA 400 V AC (inlet) / 400 V AC (outlet) shore insulating transformer
• Batteries:
• All batteries in GEL or AGM-type according to their application
• Radio Batteries: 1 x group of 24V DC batteries for radio equipment
• Service Batteries: 1 x group of 24V DC batteries for services
• Engines Start-up: 2 x groups of 24V DC batteries for main engines starting
• Generators Start-up: 2 x groups of 12V DC batteries for diesel generators starting
• Main Engines Electronics: 2 x groups of 24 V DC batteries for main engines electronics
• Motorpump Starter: 1 x group of batteries for motorpump starter
• Emergency Batteries: 1 x group of 24V DC batteries for emergency
• Battery Chargers: Alternator on each main engine and generator, in order to charge the related battery set
• Manual/automatic Battery Chargers: 1 x main engine starter battery set charger, with charging divider, 1 x diesel generator starter battery set charger, provided with charging divider, 1 x service battery set charger, 1 x emergency battery set charger, 1 x radio battery charger, 1 back-up battery set charger for emergency-service-R/T, 1 x MMEE electronic battery set charger, provided with charging divider, 1 x battery charger for motorpump’s starter

• Stabilizers: 2 x CMC electrical zero-speed fin stabilizers (CMC Stabilis Electra SE80-7-4-160)
• Bow Thruster: Electrical bow thruster (CMC BTM60EA) with an electrical motor having 45 kW input nominal power supplied by generators, Voltage 400 Vac, 3 phases, 50Hz, duty cycle S6-40%, propeller thrust 720 kgf
• Bilge Pumps: 1 x electric self-priming pump in the engine room for main bilge system, connected with the motorpump. 1 x dedicated electric pump will be installed for the garage bilge system
• Motorpump: 1 x motorpump for bilge and fire systems
• Watermaker: 1 x reverse osmosis watermaker (IDROMAR MC3J) with capacity 180 l/h
• Water Heaters: 2 x electric hot water stainless-steel heaters with total capacity of 200 l (53 USG), resistance 3+3 kW for each heater
• Fresh Water Steriliser, Filters: Active carbon filter installed between freshwater pumps and the users
• Steering System: 1 x electrical actuator in the wheelhouse, 1 x electrical actuator in the external console, placed on flybridge, 1 x hydraulic power pack (fitted in the aft technical room on portside), with 2 x 400V electric pumps and one oil tank. Hydraulic actuator with steering wheel in the aft technical room, for emergency manoeuvring
• Air Conditioning System: Designed according to the following reference conditions:
• Summer Outside air 35 °C (95 °F) R.H. 80%, Inside air 22 °C (72 °F) R.H. 50%, Sea water temperature 32 °C (90 °F)
• Winter Outside air 0 °C (32 °F), Inside air 22 °C (72 °F), Sea water temperature 10 °C (50 °F)
• Fan coil units installed in interior living areas. Air handling units supplying fresh air to all living areas

• RINA Pleasure classification

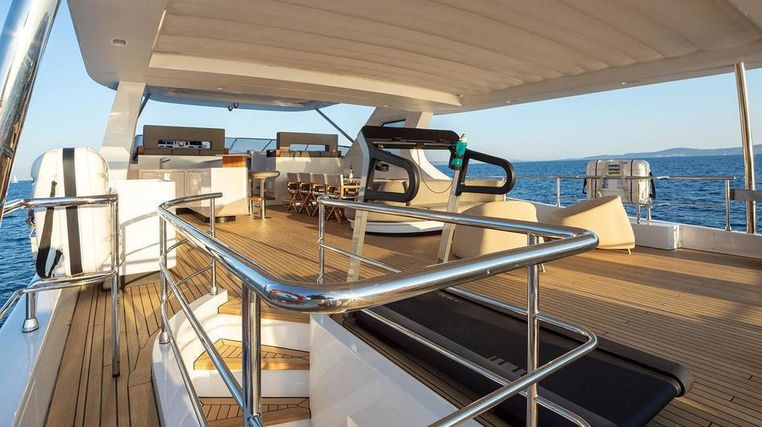

• Hard Top with sliding soft top on flybridge
• Upgrade of generators to KOHLER 70 kW-50Hz
• One GLENDINNING cablemaster (CM8, length of cable 20 m)
• Telephones in all areas (1 master ad 10 slaves)
• PANASONIC PABX central unit (model KX-TDA100DCE)
• LED lights on ceiling in all internal areas
• LED lights on ceiling in all external areas
• Dimmers for external lights (cockpit and flybridge)
• Remote controls for main engines and bow thruster (MTU) in cockpit and on flybridge
• AIS
• EPIRB E5 Smartfind Solas (McMURDO model MM82-800-004A)
• 4 x Cameras HIK Vision (2 in flybridge and 2 in aft cockpit) + 1 HIK camera in the engine room
• Empty Dome HD 11
• SAT TV KVH HD11
• Electric stern thruster
• Spotlights on aft flybridge or aft radar arch (recessed in the fiberglass) – 6 x LED spotlights FLEXA model PW1922
• 7 x Underwater lights under swim platform
• Swivelling stools in stainless steel with cushion, backrest, and footrest
• Double RACOR filters for generators
• ALFA LAVAL fuel filtering system
• Double Bed in one of the guest cabins
• 1 x Safe (JUWEL 7826) in captain’s cabin
• Additional soundproof insulation between salon and engine room
• Additional soundproof insulation between master cabin and forward chain locker
• Electric awning in the aft flybridge
• Upgrade of the lighting plan (12 x additional sockets, 6 x USB plugs)
• 30M MONTECARLO pilot seat
• Automatic parallel between generators
• Complete painted hull and superstructure, including antennas (Awlgrip/Awlcraft) snow white
• UPS Unit for A/V System
• Wi-Fi COM package

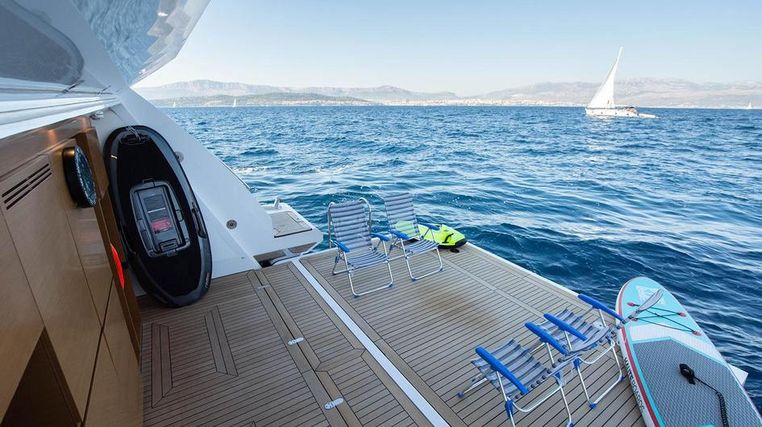

• Beach area customized layout with:
• Full height cabinets
• Fridge
• Dedicated space to 2 fishing rods & 2 Seabobs
• 1 x Umbrella next to the BBQ
• Bar cabinet in the aft cockpit with sink and icemaker
• Aft capstans with 2 ways
• 2 x Additional aft cleats on the stern
• Anchor chains 150m (diam. 12mm)
• Predisposition of MARQUIPT ladder
• No Jacuzzi on bow. Teak floor and storage underneath (with two lockers on the sides)
• Stainless-steel handrail upholstered with leather on the staircase in onyx
• Bidet in Master’s head
• Hand shower next to each WC (excluding Master’s head)
• 2 x SOFTHOUSE TONDA swivelling armchairs in Master’s cabin
• Roman shades in Master’s cabin and saloon
• Exterior Marbles: Aft cockpit table as per 35M std with the Neolith top instead of teak
• Exterior Marbles: fwd table as per 35M std with the Neolith top instead of teak
• Master’s, VIP, day and guests heads tops in Neolith Calacatta gold instead of Bianco Carrara std
• Master’s, VIP, day and guests heads sinks in Neolith Calacatta gold instead of Bianco Carrara std
• Stdb Bar: 2 tops in Neolith instead of stainless-steel + a Neolith cover for the sink
• Master’s, VIP, day and guests heads std bulkheads in Neolith Calacatta gold instead of Bianco Carrara std
• Modification of the garage for the Jet Ski
• Flybridge BBQ top in Neolith Calacatta Gold Polished in lieu of teak
• Flybridge portside cabinet top in Neolith Calacatta Gold Polished in lieu of teak
• Flybridge bar top in Neolith Calacatta Gold Polished
